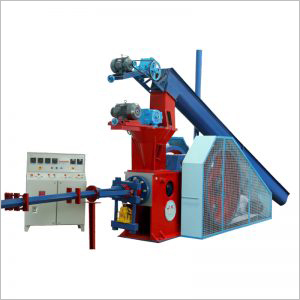

Briquette Making Machine

Get a Price/Quote

Product Details:

General Use produce white coal
Production Capacity 1200-2000 Kg/hr
Product Shape Cylinder
Weight (kg) 8500 Kilograms (kg)
Computerized No
Automatic Yes
PLC Control No
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Briquette Making Machine Price And Quantity

Price Or Price Range INR
Minimum Order Quantity 1 Plant

Briquette Making Machine Product Specifications

General Use produce white coal
Product Shape Cylinder
Voltage 415 Volt (v)
PLC Control No
Automatic Yes
Computerized No
Motor DC Motor
Production Capacity 1200-2000 Kg/hr
Weight (kg) 8500 Kilograms (kg)
Cooling System Water Cooling System

Briquette Making Machine Trade Information

FOB Port Mundra - rajkot
Supply Ability 1 Plant Per Month
Delivery Time 45 Days
Main Domestic Market All India
Certifications ISO-International Organisation for Standardization D&B-Dun & Bradstreet CE Marking Conformit

Product Description

With the help of our team of dexterous and dedicated professionals, we export and supply an optimal quality range of Briquette Making Machine that is utilized for processing the biomass raw materials into high-density wood briquettes. This Briquette Making Machine is made by using high quality required materials with the help of sophisticated technology. It is demanded in the market because of its superb performance and highly durable in nature. All the provided items are quality tested on defined parameters before final dispatch.

BIOMASS MATERIALS CHARACTERISTICS WITH CALARIC VALUE

biomass	Ash Content%	Calorific Value Kcal/Kg.
Sugarcane Bagasse	1.8	4380 K.
Castor Seed Shell	8	3862 K.
Castor Stick	5.4	4300 K.
Coconut Wastes	6.31	3720 K.
Coffee Husk	5.3	4045 K.
Coir Pith	9.1	4146 K.
Corn Cobs	0.2	4100 K.
Corn Dental Stick	3	4050 K.
Cotton Stalk & Shell	3	4252 K.
Groundnut Shell	3.8	4524 K.
Lemon Grass	5.8	4030 K.
Mulberry Stick	2.49	4380 K.
Rice husk	17.65	3950 K.
Saw Dust	1.2	4400 K.
Sugar Cane Leaves	5	3996 K.
Sun Flower Stalk	4.3	4300 K.
Sweet Sorghum Stalk	7.4	4100 K.
Gum Arabic tree [Wood]	0.9	4707 K.
Paddy Straw	15.5	3436 K.
Mustard Shell	3.7	4300 K.
Barks Wood	4.4	4270 K.
Wheat Straw	8	4100 K.
Soya Bean Husk	4.1	4170 K.
Jute Waste	3	4428 K.
Cashew Husk	20	4100 K
Palm Husk	4.9	3900 K.
Bamboo Dust	8	4160 K.
Napier Grass	8.55	4051 K.
Forestry Waste	7	3000 K.
Mustard Stalk	3.4	4200 K.
Wood Chips	1.2	4785 K.
Rice Straw	21.2	3200 K.
Tea Waste	3.8	4237 K.

Note: Calorific value may vary due to different quality of raw material and mixer of Raw material.

TECHNICAL SPECIFICATION

Features	SUPER 65	SUPREME 70	JUMBO 9075
Production Capacity	600 750Kg/Hr.	800-1000Kg/Hr.	1200 1500Kg/hr. (Depends on the Raw Material).
Finished product Size	65 mm Diameter	70 mm Diameter	90 mm Diameter
Briquette Length	150 mm 550 mm	100 mm 400 mm	150 mm 550 mm
Finished Product Shape	Cylindrical	Cylindrical	Cylindrical
Raw Material form	8mm -10mm	10mm	20 25mm , If it is longer than25mm, it s Require s for cutting process.
Process Cost/MT (Approx.)	IRs.450/ (Approx.)	IRs.450/ (Approx.)	IRS. 525 (Approx.)
Required power connection	49 HP one machine	59 HP one machine	91 HP 67.85 KW 440 V
Practical used Amp. Load	40 50 Amp (Approx.)	50 60 Amp (Approx.)	75 85 Amp (Approx.)
Power consumption	25 30 Unit / Hrs.	25 30 Unit / Hrs.	35 40 Unit / Hrs.
Trained & Skilled operator	One / Shift	One / Shift	One / Shift
Unskilled labor	Six / Shift	Six / Shift	Four / Shift
Manager In charge	One	One	One
Total weight of complete plant	4000 Kg. (Approx.)	5800 Kg. (Approx.)	8800 Kg. (Approx.)

Frequently Asked Question

1. What purpose does a briquette-making machine serve?

Ans - Use: Using any type of agricultural or forestry waste and a briquetting machine, you can create biomass briquettes without the use of glue or binder. The Biomass Briquettes are also employed in the production of heat. It is regarded as the best alternative to fossil fuels like black coal.

2. How much force is required to create briquettes?

Ans - Lower pressure (30 to 60 MPa) briquette production results in easily shatterable briquettes. Briquettes created at higher pressures (150 to 250 MPa) are compact and uniform.

3. What are the briquettes' primary ingredients?

Ans - Rice husk, charcoal fines, and/or sawdust are used to make briquettes.
